Multi Measuring Instruments Co.

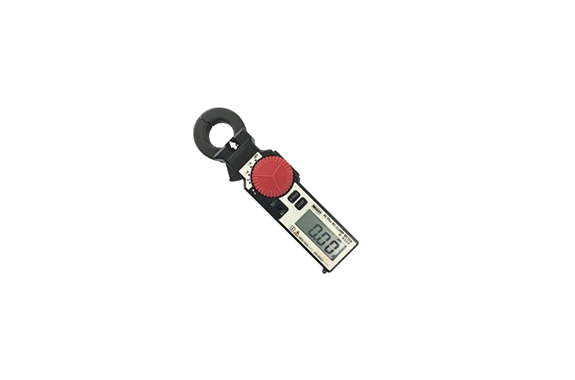

Multi M-800P DC in AC Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-800P
Features
・It can measure the micro DC current value in AC current and display the % content
・It can measure AC150Arms and DC150A like a regular clamp meter
・AC current adopts true effective value detection
・IEC1010-1 CATII I.600V compliant
Specifications
| Measuring range | AC Current 15A/150A DC Current 15A/150A AC Voltage 150V/600V DC Voltage 150V/600V DC Content % Display |
|---|---|
| AC current accuracy | 15A ±1.0％rdg±5dgt 150A ±2.0％rdg±8dgt |
| DC current accuracy | 15A ±1.0％rdg±5dgt 150A ±2.0％rdg±5dgt |
| CT Inner Diameter | φ23mm |
| Minimum resolution | 0.01A |
| Other features | Data Hold, Auto Power Off, One-Push 0 Adjustment, RMS |
| power | AA alkaline battery×3 |
| Dimensions and Weight | W48×H178×D24mm Approx. 120g |
| accessory | Batteries, carrying cases, test leads |
