Multi Measuring Instruments Co.

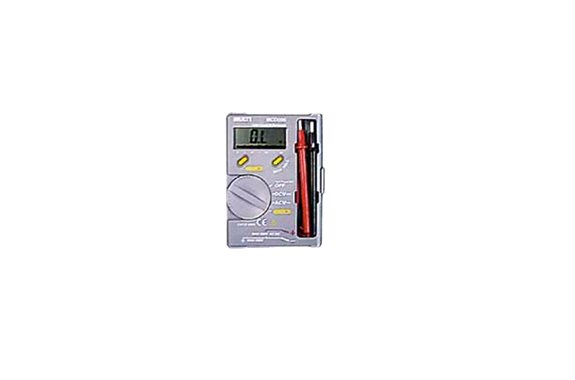

Multi MCD-006 Pocket Multimeter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MCD-006
Features
Auto power-off with 3200-count high-speed bar graph
Front cover slides for easy test lead storage
Specifications
| Measuring range | DC Voltage DCV 320.0mV: ±1.3%rdg±3dgt 3.200V: ±0.7%rdg±3dgt 32.00V/320.0V/500V: ±1.3%rdg±3dgtAC Voltage ACV 3.200V/32.00V/ 320.0V/500V: ±2.3%rdg±6dgt Resistance: 0~320.0Ω/3.200kΩ/32.00kΩ/320.0kΩ/3.200MΩ/32.00MΩ |
|---|---|
| Other features | Diode test: 0~3.2V ±10%rdg±3dgt Continuity test: Buzzer sound Auto power off: about 10 minutes after final operation |
| power | Button Battery LR-44×2 |
| Dimensions and weight | W85×H120×D12mm approx. 95g |
| accessory | Front cover, batteries, instruction manual |
