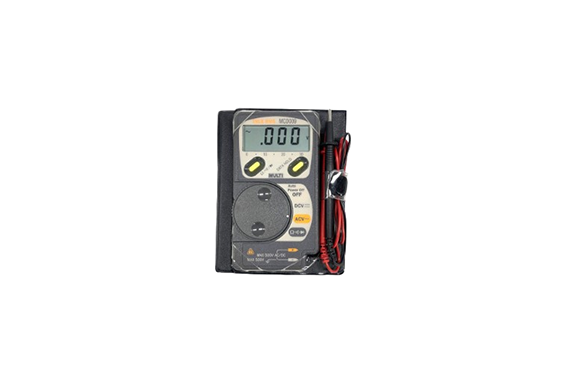

Multi MCD-009 RMS Pocket Multimeter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MCD-009
Features
・Large LCD display, with auto power-off function
・With notebook-type mobile case
・Effective value measurement
Measurment Specifications
| Measurement Items | Measuring range | accuracy |
| AC Voltage | 3.200V | ±(1.3%rdg+5dgt) |
| 32.00V／320.0V／500V | ±(2.0%rdg+5dgt) | |
| DC voltage | 320.0mV | ±(1.3%rdg+3dgt) |
| 3.200V | ±(0.7%rdg+3dgt) | |
| 32.00V／320.0V／500V | ±(1.3%rdg+3dgt) | |
| resistance | 320.0Ω | ±(2.0%rdg+5dgt) |
| 3.200kΩ／32.00kΩ／320.0kΩ | ±(2.0%rdg+3dgt) | |
| 3.200MΩ | ±(6.0%rdg+4dgt) | |
| 32.00MΩ | ±(10%rdg+10dgt) | |
| conduction | Buzzer sound at about 20 Ω or less | － |
| Diode Test | 3.200V | ±(10%rdg+3dgt) |
Specifications
| function | Auto range switching, over display, battery voltage low indication, auto power off, data hold |
|---|---|
| Sample Rate | 2 times/sec |
| power | LR-44×2 |
| Dimensions and Weight | W60×H110×D9.5mm Approx. 60g (excluding case) |
| accessory | Batteries, notebook cases |
