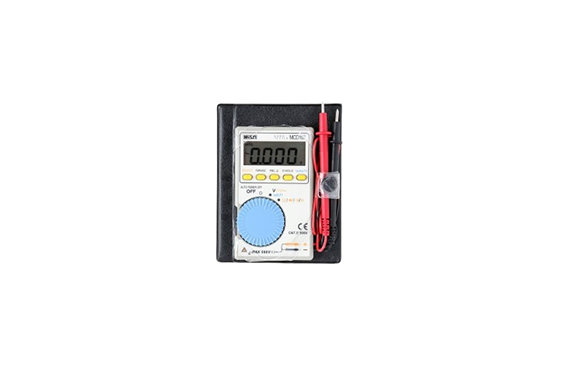

Multi MCD-107 Pocket Multimeter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MCD-107
Features
・Capacitance, frequency, and DUTY can be measured
・4000 count, with auto power-off function
・Comes with a notebook-type mobile case
Measurment Specifications
| Measurement Items | Measuring range | accuracy |
| AC Voltage | 4.000V／40.00V | ±(2.3%rdg+10dgt) |
| 400.0V／500V | ±(2.3%rdg+5dgt) | |
| DC voltage | 400.0mV | ±(0.7%rdg+3dgt) |
| 4.000V／40.00V／400.0V／500V | ±(1.3%rdg+3dgt) | |
| resistance | 400.0Ω／4.000kΩ／40.00kΩ／400.0kΩ | ±(2.0%rdg+5dgt) |
| 4.000MΩ | ±(5.0%rdg+5dgt) | |
| 40.00MΩ | ±(10%rdg+5dgt) | |
| capacitance | 40.00nF／400.0nF／4.000μF | ±(5.0%rdg+10dgt) |
| 40.00μF／100.0μF | ±(10%rdg+15dgt) | |
| frequency | 5.000Hz／50.00Hz／500.0Hz／5.000kHz／50.00kHz | ±(0.7%rdg+5dgt) |
| DUTY | 0.1%～99% | － |
| conduction | Buzzer sound below 10~60Ω | － |
Specifications
| function | Auto range switching, over display, battery voltage low indication, auto power off, data hold |
|---|---|
| Sample Rate | 3 times/sec |
| power | CR2032×1 |
| Dimensions and Weight | W59×H99×D8.6mm Approx. 65g (excluding case) |
| accessory | Batteries, notebook cases |
