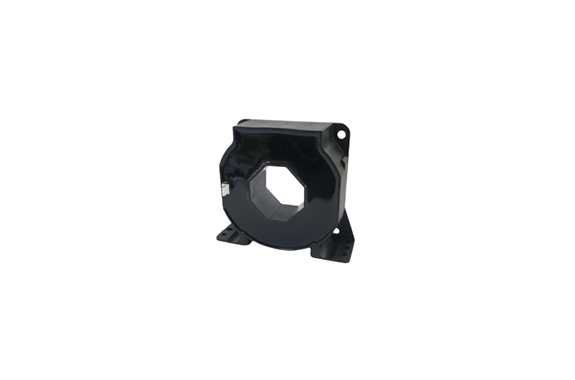

Multi MCHT-1000B Closed Loop
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MCHT-1000B
Features
●Hall effect measurement : for DC/AC/pulse current
●Application : UPS, SMPS, servo motor driver, static
DC driver, switching power supply, welding equipment power supply etc.
●Features : High precision, high current for industrial equipment, low temperature drift
Specifications
| Rated primary current | AC/DC 1000 A |
|---|---|
| Applicable current | AC/DC 0 ～ ±1500 A |
| Supply voltage | DC ±12 V ～ 24 V ±5 ％ |
| Rated secondary current | 200 mA |
| Current Change Ratio | 5000 : 1 |
| CT Inner Diameter | φ38.5 mm |
| accuracy | ±0.4 %（F.S） |
| Offset voltage | < ±10 mV |
| Residual noise | < 10 mV |
| Offset change with temperature | < ±5 mV |
| Operating temperature and humidity range | -40 ~ 70 °C, 75 %RH or less (provided that there is no condensation) |
| Storage temperature and humidity range | -40 ~ 70 °C, 75 %RH or less (provided that there is no condensation) |
| Reference Standards | EN50178, IEC61010-1, RoHS2 |
| Dimensions and weight | W90.0×H95.0×D34.0 mm approx. 520g |
| Output Connector | Molex AE-6410-03A |
