Multi Measuring Instruments Co.

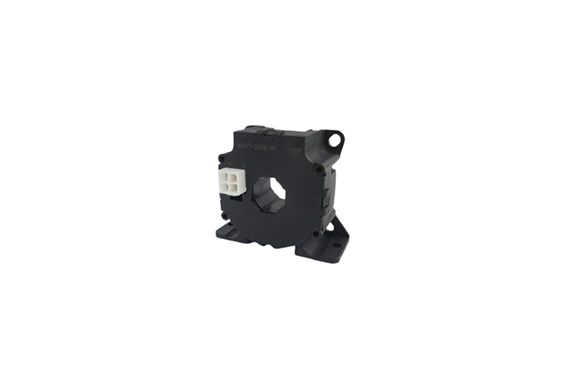

Multi MCHT-200B/4P Closed Loop
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MCHT-200B/4P
Features
●Hall effect measurement : for DC/AC/pulse current
●Application : UPS, SMPS, servo motor driver, static DC driver, switching power supply, welding equipment power supply etc.
●Features : High precision, for high current industrial equipment, low temperature drift
Specifications
| Rated primary current | 200A |
|---|---|
| Measuring range | 0～±420A |
| Supply voltage | ±12V～±15V |
| Rated secondary current | 100mA |
| Current Change Ratio | 1:2000 |
| CT Inner Diameter | φ15.5mm |
| accuracy | ±0.5% (at 25°C, rating) |
| Operating temperature range | -40～+85℃ |
| Storage temperature range | -40～+90℃ |
| Reference Standards | EN50178,IEC61010-1,RoHS |
| Dimensions and weight | W49.3xH52.4xD25.9mm Approx. 78g |
| Output Connector | Molex 5566-04AGS-210 |
