Multi Measuring Instruments Co.

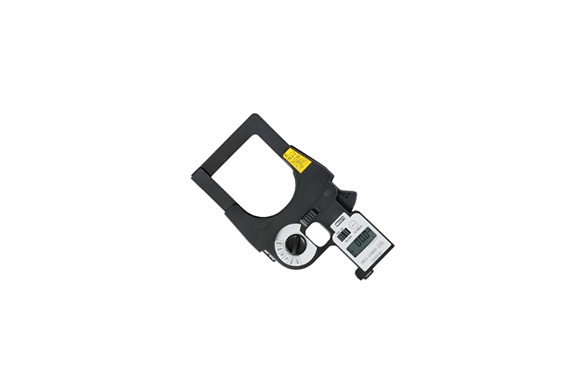

Multi MCL-1100D Large Diameter Clamp Leaker
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MCL-1100D
Features
- The world’s largest leakage ammeter
- CT inner diameter of 108×128mm
- High-frequency cut filter switch for true effective value display
- Long-term measurement of up to 3000A
- Recording output available
Specifications
| Measuring range | AC300mA/3A/30A/300A/3000A |
|---|---|
| AC current accuracy | 300mA/3A/30A/300A range ±1.5%rdg±8dgt3000A range ±2.0%rdg±8dgt |
| CT Inner Diameter | 108×128mm |
| Minimum resolution | 0.1mA |
| filter | Low-pass filter (decremented from approx. 130 Hz) |
| output | 300mV DC (full scale for each range) |
| Other features | Data Hold, Auto Power Off, Filter Switch |
| power | AA 4 manganese batteries×2 |
| Dimensions and Weight | W194×H341.5×D52mm Approx. 1650g |
| accessory | Batteries, carrying cases, belts |
| option | Recorder Output Code MR-003 Banana Plug on the Recorder Side ¥2,200 (excluding tax) MR-008 Solder Finish on the Recorder Side ¥2,200 (excluding tax) |
