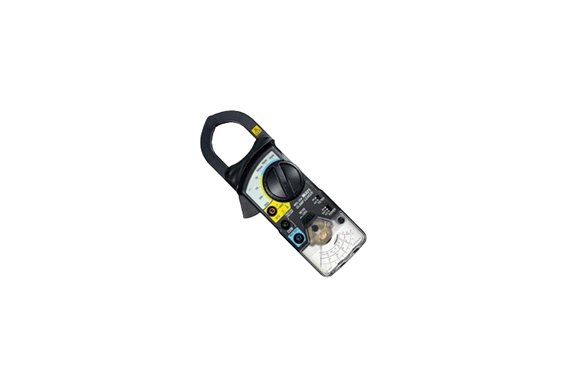

Multi MCL-350 Analog Clamp Leaker
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MCL-350
Features
Analog clamp leaker function IEC1010-1 compliant
Maximum current 500 A (minimum scale 0.2 mA)
Specifications
| Measuring range | AC Current: AC10mA/50mA/500mA/1A/5A/50A/500A AC Voltage: AC500V Resistance: 1kΩ |
|---|---|
| AC current accuracy | ±3.0％ F.S |
| CT Inner Diameter | φ40mm |
| Minimum resolution | 0.2mA |
| output | 100 mV DC (full scale for each range) |
| Other features | Meter lock function, filter switch, and logger output |
| power | AA 4 manganese batteries×2 |
| Dimensions and Weight | W69×H210.5×D34mm Approx. 403g |
| accessory | Batteries, soft cases, test leads |
| option | Recorder Output Code MR-001 Banana Plug on the Recorder Side ¥2,200 (excluding tax) MR-006 Solder Finish on the Recorder Side ¥2,200 (excluding tax) |
