Multi Measuring Instruments Co.

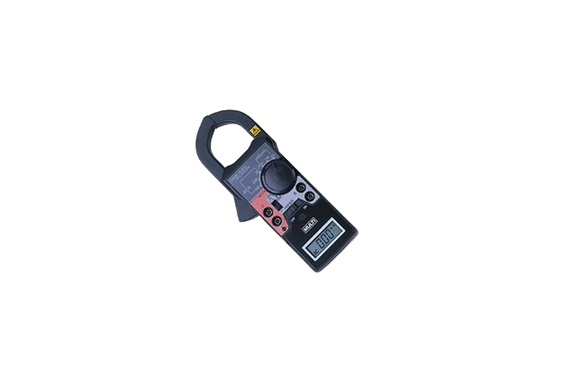

Multi MCL-400DFN Digital Clamp Leaker
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MCL-400DFN
Features
With high-frequency cut filter switch
Filter switch OFF – measurement as usual
Specifications
| CT Inner Diameter | φ40mm |
|---|---|
| Measuring range | AC Current: 0~20mA/200mA/2A/20A/400A(50/60Hz) Min: 0.01mA |
| AC Voltage: 0~600V | |
| Resistance: 2KΩ/2MΩ | |
| Continuity Buzzer | |
| Tolerance | AC Current (20mA/200mA/2A/20A Range): ±1.0%rdg±5DGT |
| AC Current (400A Range): ±1.0%rdg±3.0%FS | |
| AC Voltage & Resistance: ±1.0%rdg±5DGT | |
| power | 2 batteries UM-4 (AA 4) × |
| Dimensions and weight | W69×H197×D32mm 370g |
| accessory | Hard Case, Test Lead |
