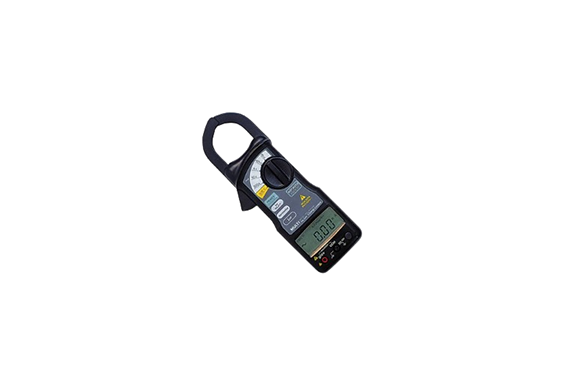

Multi MCL-400IR Io/IOR Clamp Leaker
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MCL-400IR
Features
- Advanced clamp leaker capable of measuring multiple parameters in one unit:
- Io leakage current
- Ior resistance leakage current
- Harmonics (fundamental waves: 3rd, 5th, 7th, 11th, and 13th order)
- Alternating current (AC)
- AC voltage
- Measures resistance leakage current (Ior) without requiring voltage input.
- Measurement principle includes 5th and 7th harmonic components at the measurement site.
- If the ratio of current value magnitude differs from the general ratio of the fundamental wave component, the IOR value may vary.
Specifications
| Measuring range | AC 40mA/400mA/4A/40A/300A |
|---|---|
| Voltage measurement range | AC 500V |
| Harmonic current measurement range | Basic Wave/3rd/5th/7th/11th/13th |
| AC current accuracy | 40mA/400mA/4A/40A range ±1.0%rdg±8dgt300A range ±1.0%rdg±1%F.S |
| CT Inner Diameter | φ40mm |
| Minimum resolution | 0.01mA |
| Other features | Data Hold, Auto Power Off |
| power | AA Manganese Battery UM-4×3 |
| Dimensions and weight | W70×H223×D34mm Approx. 440g |
| accessory | Batteries, soft cases, test leads |
