Multi Measuring Instruments Co.

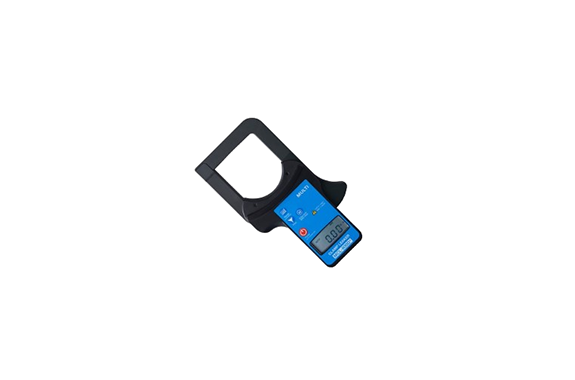

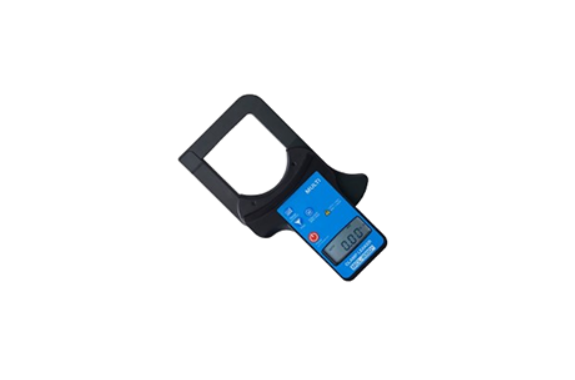

Multi MCL-800D+ Large Diameter Clamp Car
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MCL-800D+
Features
- Large diameter of CT inner diameter of 74×80mm can measure up to 1000A
- Compatible with leakage current, high-precision measurement with a minimum resolution of 0.01mA
- Filter function to cut high frequency frequencies of about 150Hz or more
- MAX hold function to hold the maximum value of the displayed value – Auto-range switching to select the optimal range according to the measured value – Large, easy-to-read display
Specifications
| Measuring range | AC20mA/200mA/2A/20A/200A/1000A/Auto |
|---|---|
| AC current accuracy | ±2.0％rdg±5dgt |
| CT Inner Diameter | 74×80mm |
| Minimum resolution | 0.01mA |
| Filter switches | Cuts high-frequency frequencies of about 150Hz or more |
| MAX Hold | Keep the maximum value displayed |
| Other features | Over Display, Battery Low Indicator, Auto Power Off, Data Hold |
| power | AA alkaline battery×3 |
| Dimensions and Mass | W138×H237×D46mm approx. 650g |
| accessory | Batteries, carrying cases |
