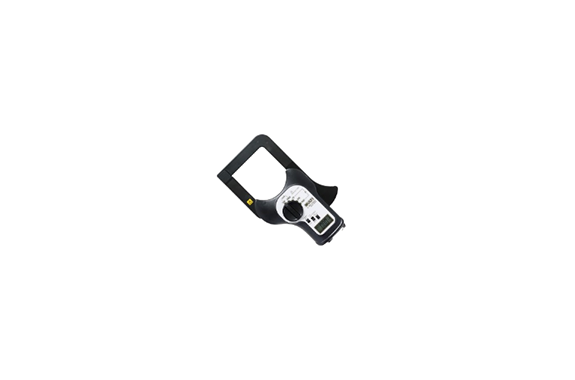

Multi MCL-800D Large Diameter Clamp Leaker
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MCL-800D
Features
Clamp CT Leakage Ammeter
with Inner Diameter 80 mm 100μA ~ 1000A Wide Measurement with Recorder Output
Specifications
| Measuring range | AC200mA/2000mA/20A/200A/1000A |
|---|---|
| AC current accuracy | ±2.0％rdg±5dgt |
| CT Inner Diameter | 74×80mm |
| Minimum resolution | 0.1mA |
| output | DC100mV (full scale for each range) *1000A range only: DC50mV F.S |
| Other features | Data Hold, Filter Switch |
| power | AA 4 manganese batteries×2 |
| Dimensions and Weight | W138×H225×D37mm approx. 500g |
| accessory | Batteries, soft cases |
| option | Recorder Output Code MR-002 Banana Plug on the Recorder Side ¥2,000 (excluding tax) MR-007 Solder Finish on the Recorder Side ¥2,000 (excluding tax) |
