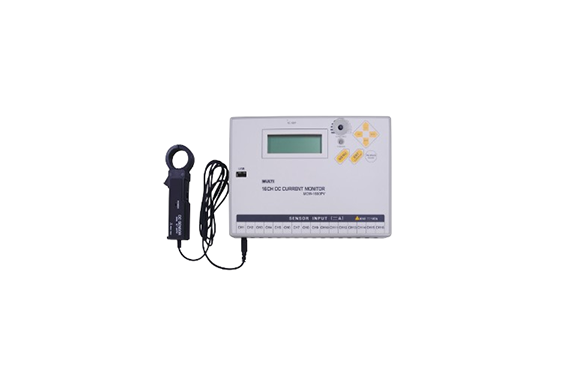

Multi MCM-1600PV DC Circuit 16CH Current Monitor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MCM-1600PV
Features
・Supports up to 1~16 circuits by adding a CT sensor (sold separately)
・Measurement data is stored in the internal memory and connected to a PC and USB to collect data
Applications: Generation current of solar power generation equipment, load current of storage batteries, etc.
Specifications
| Number of Measurement Circuits | 1~16 circuits |
|---|---|
| Measuring range | DC 0～99.9A |
| DC current accuracy | ±3％rdg±5dgt |
| Minimum resolution | 0.1A |
| Measurement Interval | 1/5/10/15/30/60 minutes |
| Record Contents | Average current value / measurement time / channel NO |
| Recording Capacity | Approximately 20,000 data (approximately 72 days with 5-minute intervals) |
| Operating Circuit Voltage | DC 600V or less |
| Software Compatible OS | Windows XP / 7 / 8.1 / 10 / 11 |
| power | Built-in NiMH battery or AC adapter |
| size | W236×H170×D56mm Approx. 840g |
| accessory | Carrying case, AC adapter, USB cable, software |
| option | φ30mm CT Sensor (CT-30PV) ¥11,000 (excluding tax) CT Storage Case (MK-001) ¥10,500 (excluding tax) |
