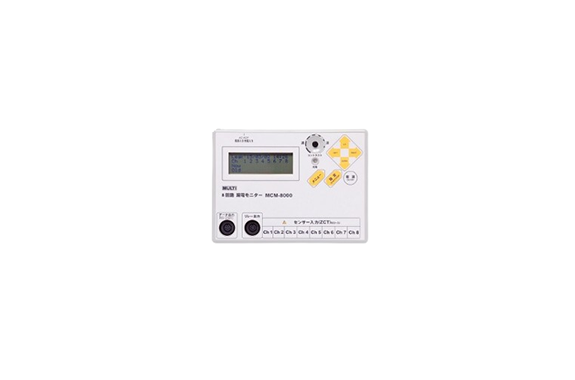

Multi MCM-8000 Multi-Circuit RCD Monitor

Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MCM-8000

Features

・Measurement and recording of leakage current for up to 8 circuits
at the same time ・Trigger record to record the date and time of leakage occurrence/end of leakage current/maximum leakage value when the set current value is exceeded
・Logging record to record the average leakage value between set intervals
・Power outage record to record when the AC adapter runs out of charge
・A wide lineup of current sensors (optional)
・High-speed sampling of about 20ms
・Alarm output function that outputs a voltage-free contact when the set current value is exceeded
・The recorded data is stored inside the main unit in CSV format and can be displayed on a PC with the included software, and the trigger recorded data can also be checked on the main unit display

Specifications

Number of Measurement Circuits	8 circuits
Measuring range	AC 0～2000mA
Minimum resolution	1mA
AC current accuracy	±3％rdg±2dgt
Sample Speed	Approx. 20ms
Filter characteristics	Built-in high-frequency cut filter
Set current value	1mA intercalation in 10~1000mA
Measurement Interval	Choose from 1/5/10/15/30/60 minutes
memory capacity	Trigger Records: Approx. 2,000 Data Logging Logs: Approx. 32,000 Data Power Outage Logs: 4000 Data
Software Compatible OS	windows Vista / 7 / 8 / 8.1 / 10 / 11
power	Rechargeable NiMH battery or AC adapter
Dimensions and Weight	W190×H140×D42mm Approx. 700g
accessory	Carrying case, AC adapter, RS232C cable, communication software
option	ZCT-18SCM CT Inner Diameter φ18mm ¥14,000 (excluding tax) ZCT-30SCM CT Inner Diameter φ30mm ¥17,500 (excluding tax) ZCT-40SCM CT Inner Diameter φ40mm ¥21,500 (excluding tax) ZCT-80SCM CT Inner Diameter 74×80mm ¥32,500 (excluding tax) ZCT-1100SCM CT Inner Diameter 108×128mm ¥73,000 (excluding tax) All CT leads: 5m CT storage case (MK-001) ¥ 10,500 (excluding tax)
