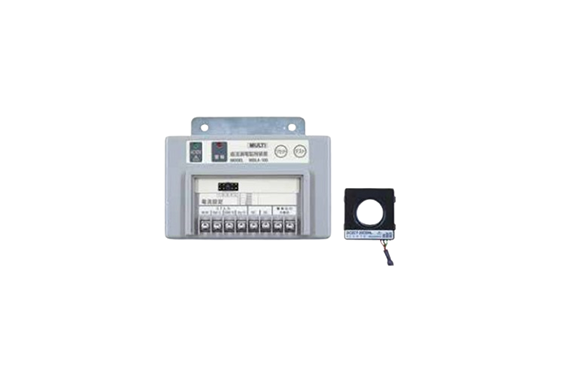

Multi MDLA-100 DC Leakage Current Monitoring Device
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MDLA-100 DC
Features
・Lamp turns on when the set value is exceeded + alarm output
・φ20mm through-type ZCT included
Specifications
| Supply voltage | AC 100V±10%、50/60HZ |
|---|---|
| Operating temperature and humidity range | 0~50°C 85%RH or less (provided that there is no condensation) |
| Storage temperature and humidity range | -20~60°C 80%RH or less (provided that there is no condensation) |
| Insulation Voltage | Power input – case to-case: AC 1200 V for 1 minute |
| Alarm output – case to case: AC 1200 V for 1 minute | |
| Insulation resistance | Between power input cases: DC 500V mega >100MΩ |
| Between alarm output cases: >100MΩ at DC 500V mega | |
| Other Specifications | Test Function: By pressing the test switch, the alarm light will turn on and the alarm output will be turned on |
| Reset function: Reset the alarm light by pressing the reset switch. If it is in operating condition at the time of reset, the alarm light will re-illuminate | |
| Dimensions and Weight | W110×H85.5×D35mm Approx. 300g |
| accessory | Through-type CT sensor, mounting plate with magnet (pre-installed) |
| option | φ30mm split type ZCT (DCZCT-110CDHL) ¥38,000 (excluding tax) |
