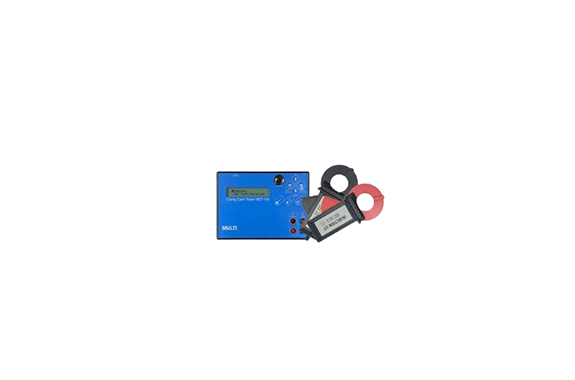

Multi MET-10X Bluetooth Built-in Clamp Ground Resistance Meter

Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MET-10X

Features

・It can be connected to a smartphone or tablet via Bluetooth to operate and store data at a distance (up to about 10 meters)
・Easy operation by clamping it to the ground wire and pressing a button
・The power supply is AA battery for improved convenience

Specifications

Measurement Functions	Ground Resistance AC Current (Load Current and Leakage Current) Surge Impedance
Measurement method	CT clamping method
Ground resistance range (display range/resolution)	10Ω　　0.10Ω～10.00Ω／0.01Ω 100Ω　 10.0Ω～100.0Ω／0.1Ω 1000Ω　100.0Ω～500.0Ω／0.1Ω 500Ω～1000Ω／1Ω
Accuracy (ground resistance)	0.10Ω～1.00Ω：±0.10Ω 1.00Ω～10.00Ω：±0.50Ω 10.0Ω～50.0Ω：±2.0Ω 50.0Ω～100.0Ω：±5.0Ω 100.0Ω～200.0Ω：±5.0Ω 200.0Ω～300.0Ω：±20.0Ω 300.0Ω～500.0Ω：±30.0Ω 500Ω～800Ω：±50Ω 800Ω～1000Ω：±80Ω
CT Inner Diameter	φ34mm
Injection frequency	3kHz～200kHz
Injection voltage	Approx. 160mV P-P
communication	Bluetooth 4.2 Class 2
Memory Function	200 Pieces
Other features	Data hold, auto power off, over display, low battery voltage display
power	AA alkaline battery × 4 AC adapter (optional)
Dimensional mass	Body: W190×H140×D42mm Approx. 450g CT for detection: W90.5×H165×D38mm approx. 460g CT for injection: W90.5×H165×D38mm approx. 440g
accessory	Battery, carrying case, CT for detection, CT for injection, auxiliary leads
option	CT for Φ80mm Detection CT AC Adapter for Φ80mm Injection (MA-002)
