Multi Measuring Instruments Co.

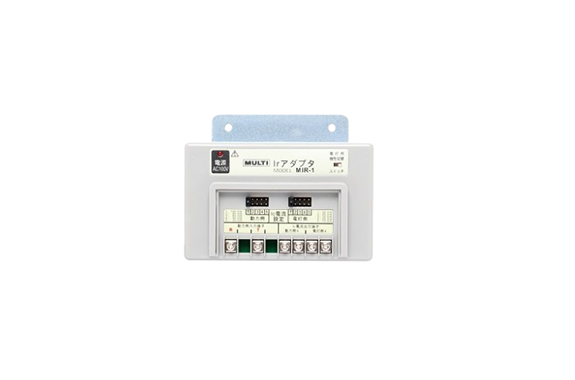

Multi MIR-1 IR Adapter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MIR-1
Features
- Existing Io Relay can be converted to an Ir Relay by combining an Ir adapter with the Io Relay
- Current is detected in “r” minutes by flowing geocapacitance and reverse phase current
- The conversion allows current flow to be monitored in the Io Relay
- Io Relay model is now discontinued
Specifications
| Dimensions and weight | 110(W)×70(H)×35(D)mm 310g |
|---|---|
| accessory | 2 leads (1 for ZCT, 1 for 3-phase voltage) |
| Current Input | Power side (R-T) acquisition, light side (single-phase 2-wire) acquisition |
| IC Current Switching | Short pins (for power, 2 for electric lights) |
| Set IC current value | 0, 20, 40, 60, 80, 100mA (up to 120mA on multiple pins) |
