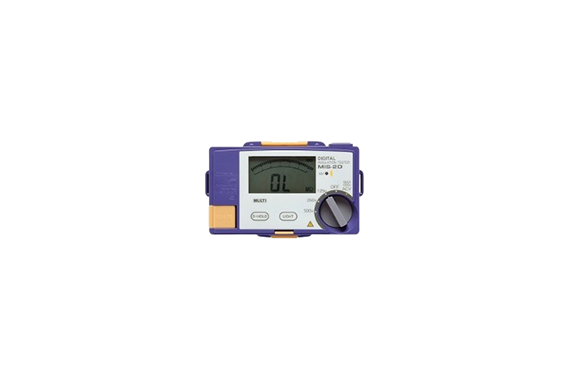

Multi MIS-D 3 Range Insulation Ohmeter (3 Digital Models)

Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MIS-D 3

Features

– Digital & analog display
– Backlit indicator for reading even in dark places
– With load discharge function
– Convenient structural design that allows the lid to be stored at the bottom of the main unit
– Compliant with JIS C 1302 (1994)

Body Specifications
	MS-2D	MS-3D	MS-4D
Rated voltage	125V/250V/500V	250V/500V/1000V	125V/250V/1000V
Voltage measurement	Measuring range AC0~600V Accuracy ±2.5%F.S	Measuring range AC0~600V Accuracy ±2.5%F.S	Measuring range AC0~600V Accuracy ±2.5%F.S
Power	AA alkaline battery×6	AA alkaline battery×6	AA alkaline battery×6
Dimensions and Mass	W170×H54×D105mm Approx. 350g	W170×H54×D105mm Approx. 350g	W170×H54×D105mm Approx. 350g
Accessory	Batteries, cord sets (line cord, ground cord, cord storage case, belt)	Batteries, cord sets (line cord, ground cord, cord storage case, belt)	Batteries, cord sets (line cord, ground cord, cord storage case, belt)
Option	Probe with switch (cord length approx. 1m) (MP-001) ¥3,200 (excluding tax)	Probe with switch (cord length approx. 1m) (MP-001) ¥3,200 (excluding tax)	Probe with switch (cord length approx. 1m) (MP-001) ¥3,200 (excluding tax)

Measurment Specifications

Rated voltage	125V	250V	500V	1000V
Maximum effective display value	20MΩ	50MΩ	100MΩ	2000MΩ
Median display	0.5MΩ	1MΩ	2MΩ	50MΩ
1st effective measurement range	0.02MΩ～10MΩ	0.05MΩ～20MΩ	0.1MΩ～50MΩ	2MΩ～1000MΩ
2nd effective measurement range	0.01MΩ～0.02MΩ 10MΩ～20MΩ	0.02MΩ～0.05MΩ 20MΩ～50MΩ	0.05MΩ～0.1MΩ 50MΩ～100MΩ	1MΩ～2MΩ 1000MΩ～2000MΩ
Tolerance	1st effective measurement range ±5%rdg 2nd effective measurement range ±10%rdg Outside the above range ±30%rdg
