Manufacturer: Multi Measuring Instruments Co., Ltd.

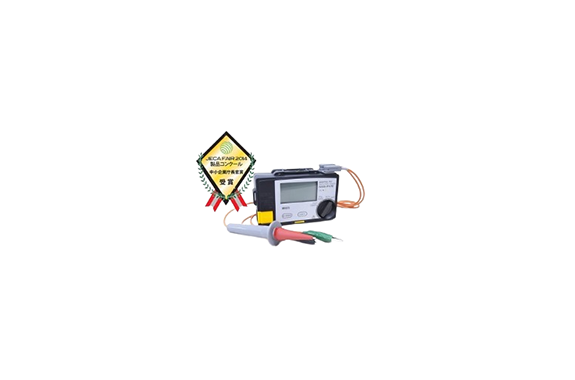

Model: MIS-PVS
Features
- Solar panels can be accurately measured even during power generation.
- Safe operation without the need to short-circuit the P-N phase.
- If there is insulation deterioration, the affected part (P phase or N phase) between modules is displayed on the LCD.
- Can measure DC voltage from 0 to 999V.
- Can be used as a 500V/1000V megger, similar to conventional megger devices
Specifications
| Rated Measurement Voltage | PVL（500V） | PVH（1000V） |
|---|
| Maximum effective display value | 100MΩ | 2000MΩ |
|---|
| Median display | 2MΩ | 50MΩ |
|---|
| First effective measurement range | 0.1MΩ or more and 50MΩ | 2MΩ or more and 1000MΩ |
|---|
| Tolerance | ± 5% or less |
|---|
| 2nd effective measurement range | 0.05MΩ～0.1MΩ | 1MΩ～2MΩ |
|---|
| 50MΩ～100MΩ | 1000MΩ～2000MΩ |
| Tolerance | ± less than 10% |
|---|
| Indication of insulation deterioration | When the insulation resistance value is less than 1MΩ, the insulation deterioration is displayed on the LCD. |
|---|
| DC Voltage Measurement Range | DC0~999V (minimum resolution 0.1V) |
|---|
| indication | 3200 Count LCD Display |
|---|
| Viewing range | 3. 200MΩ / 32.00MΩ / 320.0MΩ / 3200MΩ (4 Range Auto) |
|---|
| Minimum resolution | 0.001MΩ |
|---|
| Other features | Overrange display, data hold, auto power off, backlight, automatic load discharge function |
|---|
| standard | JIS C 1302(2002) compliant |
|---|
| Operating temperature and humidity range | 0~40°C, 80%RH or less (no condensation) |
|---|
| power | AA alkaline battery×6 |
|---|
| Dimensions and Weight | W170×H52×D105mm Approx. 350g |
|---|
| accessory | Battery, measuring cord set, insulating cap (red), belt, carrying case |
|---|
| option | Probe with switch (cord length approx. 1m) (MP-001) ¥3,200 (excluding tax) Capacitive
countermeasure cord (MC-001) ¥5,400 (excluding tax) |
|---|
