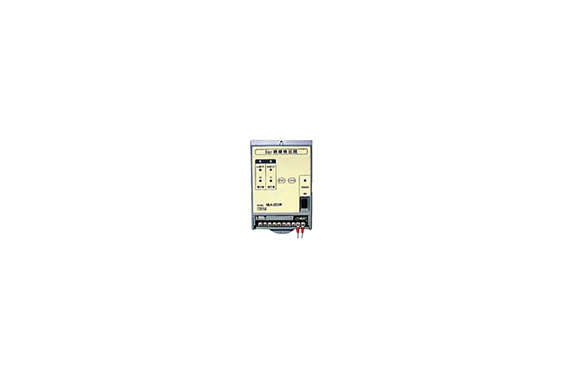

Multi MLA-200IR Ior Insulation Monitoring Device
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MLA-200IR
Features
- Ior clamping MCL400IR is converted into an Ior relay
- Safe and easy installation without voltage input
- Ior detection of neutral wire (S phase)
- Price not found in conventional IR and IGR relays
- Compact design
Specifications
| power | AC100V |
|---|---|
| Dimensions and weight | 130(W)×200(H)×38(D)mm 500g |
| accessory | Split type ZCT (φ22mm) 2 pcs |
| Number of monitoring circuits | 2 circuits (light circuit, power circuit) |
| Detection accuracy | ± within 10% for each alarm setting |
| Detection time limit | Approx. 6 seconds (can be set to 60 seconds internally) |
| Return value | 80% of alarm setpoint |
| Over-input alarm | If the io current is more than 1A, the LED will turn on, and the alarm output will be ON. |
| Reset function | Reset the alarm light, re-illuminate if it is in working condition |
| Alarm output | 2 Circuits, Relay Contact Outputs (125V AC, 0.5A/24V DC, 1A) |
| Alarm setpoint | 50mA (can be set to 100, 200, or 400mA internally) |
