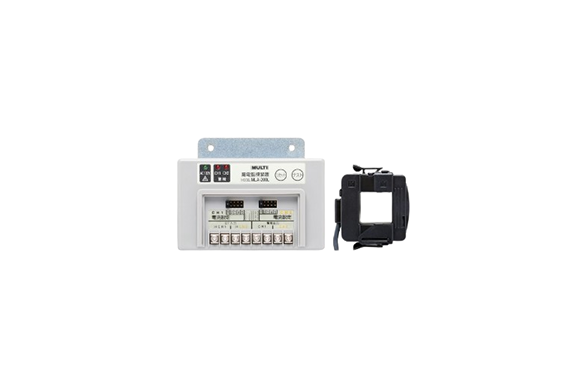

Multi MLA-200L Insulation Monitoring Device
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MLA-200L
Features
・Alarm is sent when the leakage current reaches a set value or higher
・Equipped with a lamp to hold whether a leakage occurred in CH1 or CH2
Specifications
| Number of monitoring circuits | 2 circuits |
|---|---|
| Set current value | 50／100／200／400／800mA |
| precision | ±5% of the set current value |
| Alarm output | Relay contact output |
| Alarm indication | Lamp on each channel during alarm operation |
| CT Inner Diameter | φ22mm |
| Operating temperature and humidity range | 0~50°C 85%RH or less (non-condensing) |
| power | AC 100V±10% 50／60Hz |
| Dimensions and Mass | Body: W110×H85.5×D35mm approx. 300g CT: W54×H58×D30mm approx. 200g |
| accessory | Split type ZCT (ZCT-22F (with terminal))×2 |
