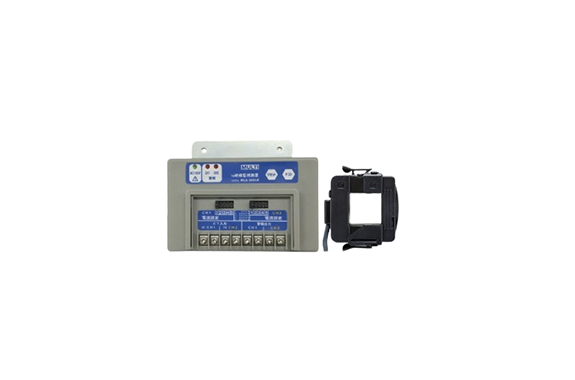

Multi MLA-200LR Io Insulation Monitoring System
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MLA-200LR
Features
・Alarm is sent when the leakage current reaches a set value or higher
・Equipped with a lamp to hold whether a leakage occurred in CH1 or CH2
Specifications
| Number of monitoring circuits | 2 circuits |
|---|---|
| Set current value | 50／100／200／400／800 mA |
| precision | ±5.0% of set current value |
| Alarm output | Relay contact output |
| Alarm indication | Lamp on each channel during alarm operation |
| CT Inner Diameter | φ22 mm |
| Operating temperature and humidity range | 0~50°C 85%RH or less (non-condensing) |
| power | AC 100V ±10% 50／60Hz |
| Dimensions and Mass | W110 × H85.5 × D35 mm Approx. 300 g |
| accessory | φ22mm split type ZCT (ZCT-22FTV-Y, cable length 4m)×2 |
| option | φ80mm split type ZCT (ZCT-80MS-Y, cable length 4m) |
