Multi Measuring Instruments Co.

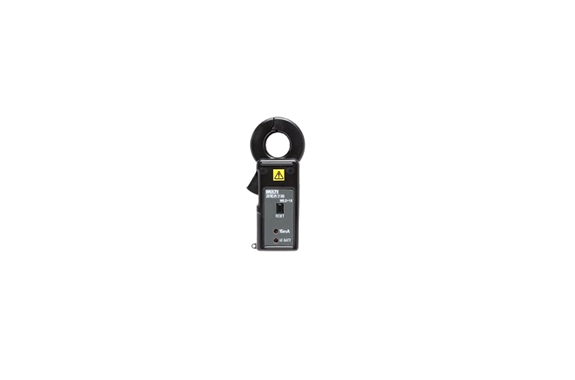

Multi MLD-18 Clamp-on Small Leakage Indicator
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MLD-18
Features
Installed in each circuit such as distribution board, detects leakage of 15mA or more, displays and holds LEDs
Specifications
| Set value | 15mA |
|---|---|
| accuracy | ±5％ |
| Operating time | 20ms |
| Action Representation | When the set value is exceeded, the LED flashes |
| CT Inner Diameter | φ18mm |
| power | button battery LR-44×2 |
| Dimensions and Weight | W45×H101×D23mm Approx. 70g |
| accessory | Batteries, soft cases |
| option | Trunk case (10 units MK-002) ¥16,000 (excluding tax) |
