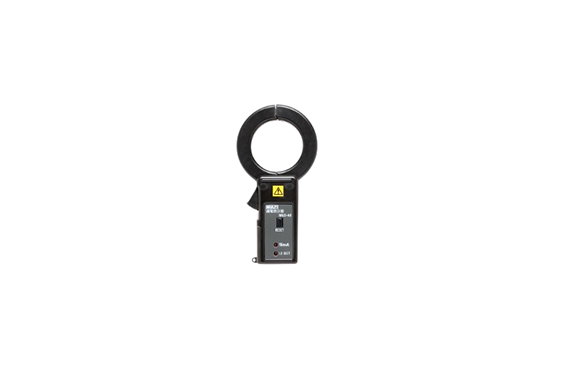

Multi MLD-40 Clamp-on Miniature Leakage Indicator
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MLD-40
Features
・LED lights up when a leakage of 15mA or more
is detected ・Compatible with ELB with 20ms high-speed detection
・The operating period is about 1 month, which is ideal for detecting intermittent leakage electricity.
Specifications
| Set value | 15mA |
|---|---|
| accuracy | ±5％ |
| Operating time | 20ms |
| Action Representation | When the set value is exceeded, the LED flashes |
| CT Inner Diameter | φ40mm |
| frequency | Please specify 50Hz or 60Hz when ordering |
| power | button battery LR-44×2 |
| Dimensions and Weight | W64×H124×D23mm Approx. 125g |
| accessory | Batteries, soft cases |
| option | Trunk case (5 units MK-003) ¥19,500 (excluding tax) |
