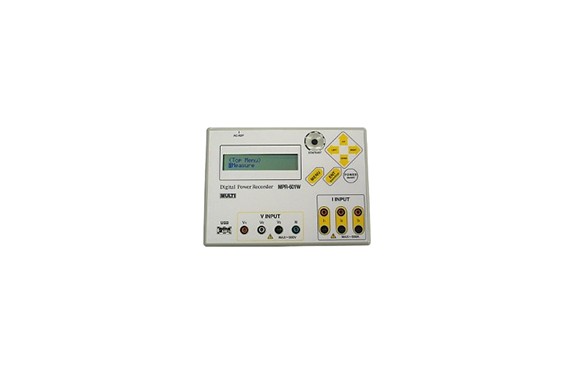

Multi MPR-601W-01 Digital Power Recorder (3 Phase 4 Wires)
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MPR-601W-01
Features
・Three-phase 4-wire type
・Supports from single-phase 2-wire to three-phase 4-wire
・Records on USB memory and data can be imported on PC
・Compatible with 0~500V/500A, PT/CT
Specifications
| Measuring Line | Single-phase 2-wire/ single-phase 3-wire/ 3-phase 3-wire/ 3-phase 4-wire |
|---|---|
| Measurement Items | Voltage / Current / Apparent Power / Active Power / Regenerative Power / Power Factor / Accumulated Power / Accumulated Time / Frequency |
| voltage | 500.0V ±0.5%rdg±0.3%F.S |
| electric current | 10.00/50.00A/100.0A/500.0A ±0.5%rdg±0.3%F.S+Clamp CT Accuracy |
| Active power | ±0.5%rdg±0.5%F.S+clamp CT accuracy |
| Power rate | 0~100% ±2%rdg+clamp CT accuracy |
| frequency | 45～65Hz ±0.5%rdg±1dgt |
| Crest Factor | Voltage: 2 or less (at 400V or less), Current: 2 or less (at full-scale input) |
| CT Inner Diameter | φ40mm |
| interval | 1/5/10/15/30/60 minutes |
| PT/CT Settings | 1 ～ 9999 |
| Recording media | USB Memory |
| USB Memory Specifications | USB2.0/1.1 4GB or less (formatted in FAT) |
| Software Compatible OS | Windows 7 / 8.1 / 10 / 11 |
| power | AA × 4 or AC adapter |
| Dimensions and Weight | Body: W190×H140×D42mm/approx. 460g Clamp CT (CT-40PB): W70×H180×D30mm/approx. 160g |
| accessory | Carrying case, clamp CT×3, voltage code (red, white, black, green), software, USB memory, AC adapter |
| option | Clamp CTφ40mm ¥21,500 each (excluding tax) ・R phase (red): CT-40PB-I1 ・S phase (white): CT-40PB-I2 ・T phase (black): CT-40PB-I3Clamp CTφ80mm ¥32,500 each (excluding tax) ・For R phase (red): CT-80PB-I1 ・For S phase (white): CT-80PB-I2 ・For T phase (black): CT-80PB-I3 |
