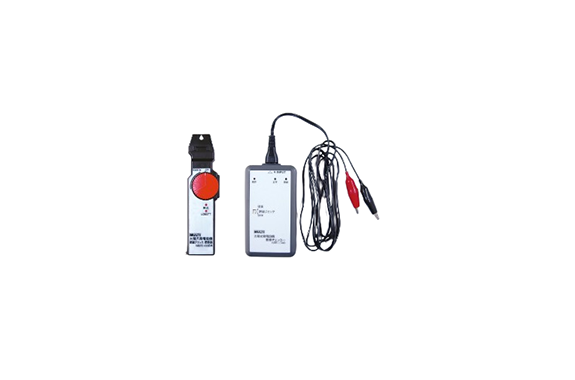

- The NSEI-100D is a device designed to identify the point of disconnection in the DC circuit of a photovoltaic installation, specifically between the battery panel and the inverter.
- It allows you to identify the broken string within the junction box and locate the exact point of failure within the module using the included probe.
Specifications
| Operating Circuit Voltage | DC12～600V |
|---|---|
| Signal frequency | 5kHz |
| Sensitivity switching | Step 3 |
| Action Representation | Red LED flashing and buzzer sounding |
| power | Transmitter: AA alkaline battery ×3 Probe: AA alkaline battery ×3 |
| Dimensions and Weight | Transmitter: W76×H135×D35mm approx. 250g Spacecraft: W40×H166.5×D24.5mm approx. 115g |
| accessory | Batteries, carrying cases, and clips for signal injection |
