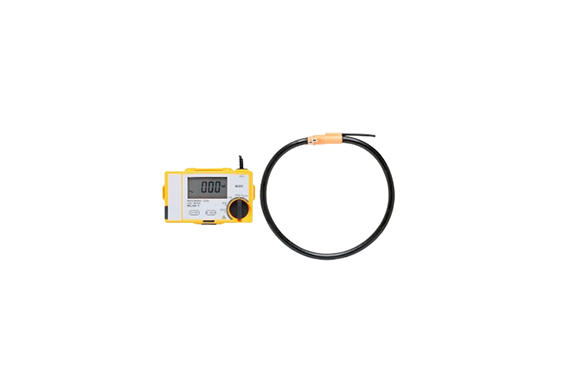

Multi RLM-1 Flexible Leakage Ammeter (Rogowski Leak Meter)
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: RLM-1
Features
- Flexible ZCT that can be bent freely (inner diameter φ210mm, weight approximately 180g)
- Wide measurement range: AC 10mA to 3000A (4 ranges: 3000mA/30A/300A/3000A)
- Minimal influence from external magnetic fields and residual current (about 1/10 of general Rogowski-type CT)
- Noise cutting with high-frequency cutting function (cut-off frequency: 150Hz)
- Supports inverter waveform and RMS measurement (True RMS indication)
- Equipped with recorder signal output (full-scale DC 300mV output)
Specifications
| Measuring range | AC 3000mA/30A/300A/3000A |
|---|---|
| AC current accuracy | 3000mA range ±3.0%rdg±10dgt30A/300A/3000A range ±2.5%rdg±5dgt |
| CT Inner Diameter | φ210mm |
| Minimum resolution | 1mA |
| output | DC 300mV (full scale for each range) |
| Other features | Data Hold, Auto Power Off, Filter Switch, RMS |
| power | AA Alkaline Battery LR6×6 |
| Dimensions and Weight | Body: W159×H105×D53mm approx. 350g CT: Inner diameter φ210mm approx. 250g |
| accessory | Batteries, carrying cases |
| option | Recorder Output Code MR-003 Banana Plug on the Recorder Side ¥2,000 (excluding tax) MR-008 Solder Finish on the Recorder Side ¥2,000 (excluding tax) |
