Multi Measuring Instruments Co.

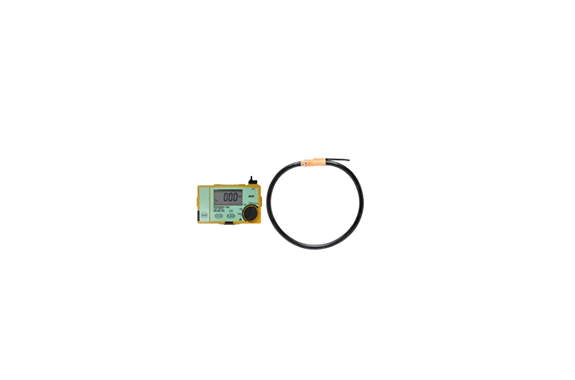

Multi RLM-10 Flexible Leakage Ammeter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: RLM-10
Features
With backlight function
Flexible ZCT that can be bent freely (inner diameter φ210mm, weight approx. 250g)
Noise cutting with high-frequency cutting function (cut-off frequency 150Hz)
Specifications
| Measuring range | AC 3000mA/30A/300A/3000A |
|---|---|
| AC current accuracy | 3000mA range ±3.0%rdg±10dgt30A / 300A / 3000A range ±2.5%rdg±5dgt |
| CT Inner Diameter | φ210mm |
| Minimum resolution | 1mA |
| Recorder output | DC 300mV (full scale for each range) |
| Other features | Backlight, Data Hold, Auto Power Off, Filter Switch, RMS |
| power | AA alkaline battery ×6 |
| Dimensions and Weight | Body: W159×H105×D53mm approx. 350g CT: Inner diameter φ210mm approx. 250g |
| accessory | Batteries, carrying cases |
| option | Recorder Output Code MR-003 Banana Plug on the Recorder Side ¥2,000 (excluding tax) MR-008 Solder Finish on the Recorder Side ¥2,000 (excluding tax) |
