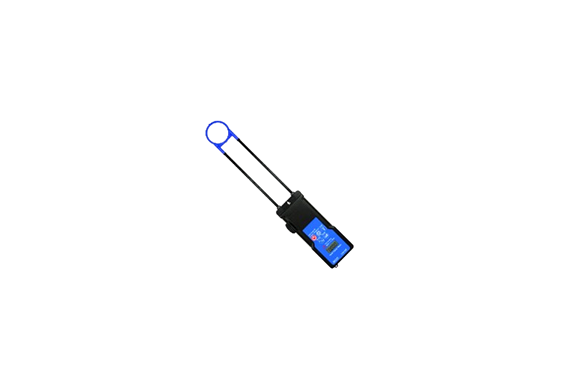

Multi TCM-45E Twist Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: TCM-45E
Features
・Unique opening and closing mechanism that can measure even in narrow places
・Switching between AC/DC 10A/100A in 2 ranges
・CT inner diameter Φ45mm
・Execution value measurement
that can accurately measure even with distorted waveforms
*This is a jointly developed product with Exio Group Corporation
Specifications
| Measuring range | DC：10A/100A AC：10A/100A |
|---|---|
| DC current accuracy/measurement range | 10A range ±1.5%rdg±5dgt/0.004~9.999A100A range ±2.0rdg±5dgt/0.04~99.99A |
| AC current accuracy/measurement range | 10A range ±1.5%rdg±10dgt/0.001~9.999A100A range ±2.0rdg±10dgt/0.01~99.99A |
| CT Inner Diameter | Φ45mm |
| Other features | Overrange display, data hold, one-push 0 adjustment, auto power off battery low indication |
| AC detection system | Effective value detection |
| Operating Circuit Voltage | AC/DC 500V or less |
| Minimum resolution | 0.001A |
| power | AA alkaline battery×3 |
| Dimensions and Mass | W82×H437×D46.6mm Approx. 380g |
| accessory | Batteries, mobile case, instruction manual |
