Multi Measuring Instruments Co.

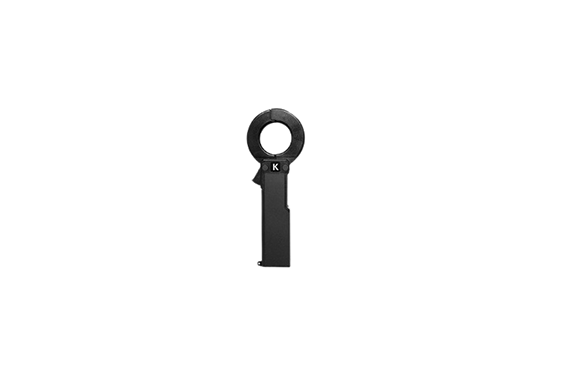

Multi ZCT-110 Clamp-on AC current sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: ZCT-110
Features
Microcurrent measurement of AC 1mA or less Leakage current only High sensitivity type that is not affected by external influences Terminal feeder batch measurement
Specifications
| Applicable current | AC 0.01mA～20A |
|---|---|
| Maximum allowable current | AC 30A |
| Nominal Current Ratio | For leakage current (red-black) 1600 turns For load current (white-green) 3600 turns |
| Example output | AC 60.0mV±2% (1A/100Ω) for leakage current AC 272.5mV±2% (10A/100Ω) for load current |
| Application frequency | 10Hz～1kHz |
| Wire diameter that can be installed | Max φ30mm |
| Withstand voltage | AC 2200V/1 min (between exterior case ~ output) |
| Insulation resistance | DC 500V/100MΩ or more (between exterior case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less (but not condensing) |
| Output Leads | Approx. 20cm 4-core shielding wire (φ4mm) |
| Dimensions and weight | W58×H158×D23mm Approx. 105g |
