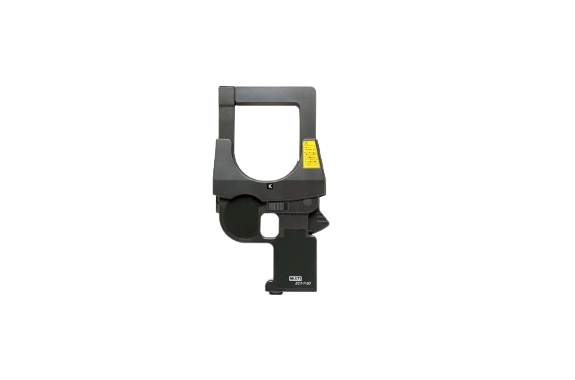

Multi ZCT-1100 clamp-on AC current sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: ZCT-1100
Features
for ultra-large diameter leakage current measurement CT for bulk measurement of main lines
Specifications
| Applicable current | AC 1mA～3000A |
|---|---|
| Maximum allowable current | AC 3600A |
| Nominal Current Ratio | For leakage current (red-black) 3080:1 For load current (white-green) 2000:1 |
| Example output | AC 51.1mV±2% (10A/10Ω) *In white and green |
| Application frequency | 10Hz～5kHz |
| Wire diameter that can be installed | Up to 108×128mm |
| Withstand voltage | AC 2200V/1 min (between exterior case ~ output) |
| Insulation resistance | DC 500V/100MΩ or more (between exterior case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less (but not condensing) |
| Output Leads | Approx. 1m 4-core shielded wire (φ4mm) |
| Dimensions and weight | W194×H341.5×D52mm Approx. 1650g |
