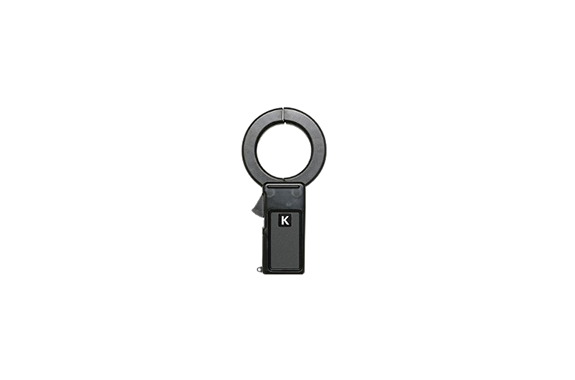

Multi ZCT-140S clamp-on AC current sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: ZCT-140S
Features
Compact, general-purpose leakage current measurementCT feederfor batch measurement
Specifications
| Applicable current | AC 1mA～300A |
|---|---|
| Maximum allowable current | AC 360A |
| Nominal Current Ratio | 2400:1 |
| Example output | AC 89ｍV±3％（2.4A/100Ω） |
| Application frequency | 10Hz～500Hz |
| Wire diameter that can be installed | Max φ40mm |
| Withstand voltage | AC 2200V/1 min (between exterior case ~ output) |
| Insulation resistance | DC 500V/100MΩ or more (between exterior case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less (but not condensing) |
| Output Leads | Approx. 20cm Single Core Shielded Wire (φ3.1mm) |
| Dimensions and weight | W64×H122×D23mm approx. 125g |
