Multi Measuring Instruments Co.

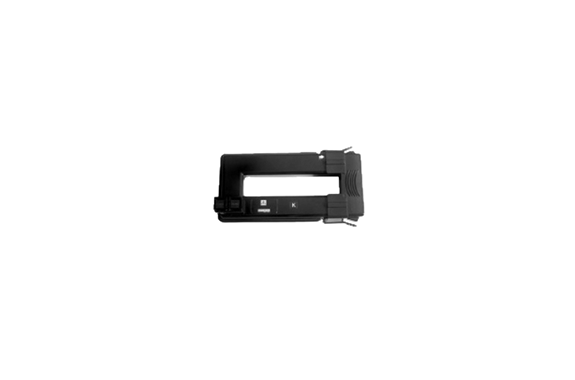

Multi ZCT-150T Sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: ZCT-150T
Features
Split track type for easy installation Leakage current only, highly sensitive type that is not affected by external influences, busbar wiring compatible
Specifications
| Applicable current | AC1mA～50A |
|---|---|
| Maximum allowable current | AC60A |
| Nominal Current Ratio | 2000:1 |
| Example output | 52.1mV±2% （10A/10Ω） |
| Application frequency | 10Hz～1KHz |
| Wire diameter that can be installed | Up to 32mm×150mm |
| Withstand voltage | AC2200V/1 minute (between outer case ~ output) |
| Insulation resistance | DC500V/100MΩ or more (between outer case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less (but not condensing) |
| output | Terminal output |
| Dimensions and weight | W230×H120×D50mm Approx. 1300g |
