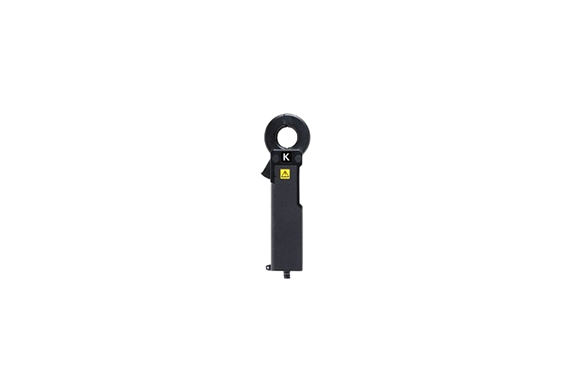

Multi ZCT-18 clamp-on AC current sensor
Manufacturer: Multi Measuring Instrument Co., Ltd.
Model: ZCT-18
Features
Compact, general-purpose power measurement CT terminal feeder measurement
Specifications
| Applicable current | AC 0.1～20A |
|---|---|
| Maximum allowable current | AC 30A |
| Nominal Current Ratio | 2200:1 |
| Example output | AC 98ｍV±2％（2.2A/100Ω） |
| Application frequency | 10Hz～500Hz |
| Wire diameter that can be installed | Maximum φ18mm |
| Withstand voltage | AC 2200V/1 min (between exterior case ~ output) |
| Insulation resistance | DC 500V/100MΩ or more (between exterior case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less (but not condensing) |
| Output Leads | Approx. 20cm single shield wire (φ3mm) |
| Dimensions and weight | W45×H140×D20mm approx. 70g |
