Multi Measuring Instruments Co.

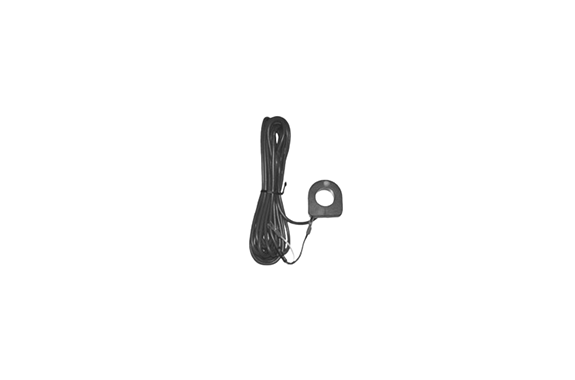

Multi ZCT-20M throughAC current sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: ZCT-20M
Features
ZCT sensor for through-leakage current measurement
Specifications
| Applicable current | AC0.01mA～50A |
|---|---|
| Nominal Current Ratio | 2000:1 |
| Application frequency | 10～500Hz |
| Recommended burden resistance | 1～200Ω |
| Wire diameter that can be installed | Max φ20mm |
| Withstand voltage | AC2200V/1 minute (between outer case ~ output) |
| Insulation resistance | DC500V/100MΩ or more (between outer case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less (but not condensing) |
| Output Leads | Approx. 4m φ4 single core shielded wire Y crimping terminal |
| Dimensions and weight | 39×41×17mm Approx. 160g |
