Multi Measuring Instruments Co.

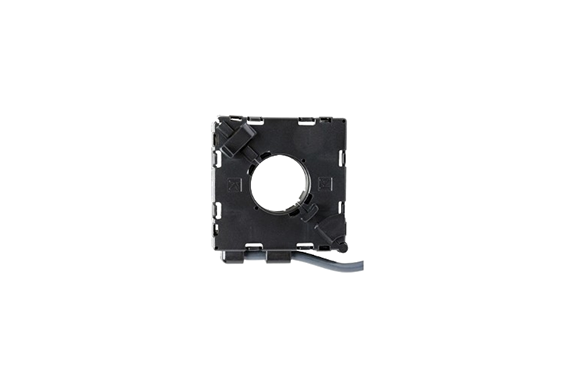

Multi ZCT-22 split AC current sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: ZCT-22
Features
stationary leakage current measurementCT
1mA~100A wide range measurement Sensitive type resistant to
external influences.
Specifications
| Applicable current | AC 1mA～100A |
|---|---|
| Maximum allowable current | AC 100A |
| Nominal Current Ratio | 2000:1 |
| Example output | AC 19.4ｍV±2％（0.2A/200Ω） |
| Application frequency | 10Hz～500Hz |
| Wire diameter that can be installed | Maximum φ22mm |
| Withstand voltage | AC 2200V/1 min (between exterior case ~ output) |
| Insulation resistance | DC 500V/100MΩ or more (between exterior case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less (but not condensing) |
| Output Leads | Approx. 4m single shielded wire (φ4mm) with Y crimp terminal |
| Dimensions and weight | W52×H58×D29.5mm approx. 200g |
