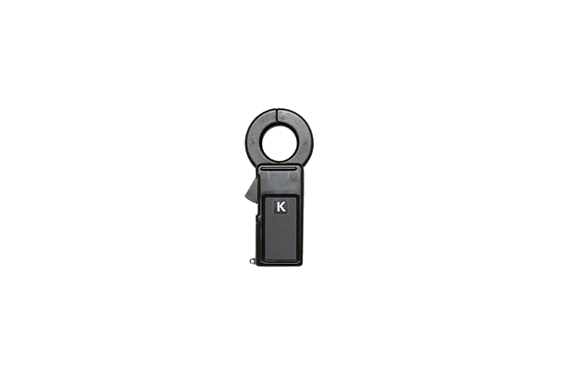

Multi ZCT-23S Clamp-on AC current sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: ZCT-23S
Features
Compact, general-purpose power measurement CT terminal feeder measurement
Specifications
| Applicable current | AC 0.1A～120A |
|---|---|
| Maximum allowable current | AC 150A |
| Nominal Current Ratio | 2000:1 |
| Example output | AC 98ｍV±2％（2A/10Ω） |
| Application frequency | 10Hz～500Hz |
| Wire diameter that can be installed | Max φ23mm |
| Withstand voltage | AC 2200V/1 min (between exterior case ~ output) |
| Insulation resistance | DC 500V/100MΩ or more (between exterior case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less (but not condensing) |
| Output Leads | Approx. 20cm single shield wire (φ3mm) |
| Dimensions and weight | W48×H105×D23mm approx. 65g |
