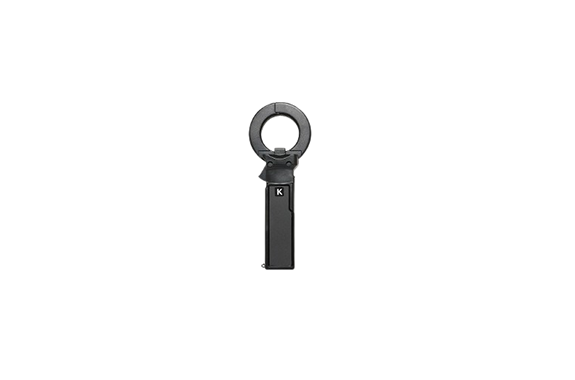

Multi ZCT-340L Clamp-on AC current sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: ZCT-340L
Features
Microcurrent measurement of AC 1mA or less Leakage current only High sensitivity type that is not affected by external influences Terminal feeder batch measurement
Specifications
| Applicable current | AC 0.01mA～20A |
|---|---|
| Maximum allowable current | AC 30A |
| Nominal Current Ratio | 2000:1 |
| Example output | AC 18.7mV±3%（0.2A/200Ω） |
| Application frequency | 10Hz～500Hz |
| Wire diameter that can be installed | Max φ35mm |
| Withstand voltage | AC 2200V/1 min (between exterior case ~ output) |
| Insulation resistance | DC 500V/100MΩ or more (between exterior case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less (but not condensing) |
| Output Leads | Approx. 20cm 2-core shielding wire (φ3.1mm) |
| Dimensions and weight | W68×H179×D30mm Approx. 120g |
