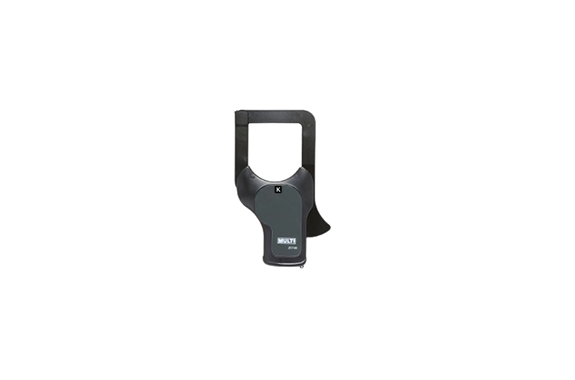

Multi ZCT-80 clamp-on AC current sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: ZCT-80
Features
for large-diameter power measurement CT for trunk line measurement
Specifications
| Applicable current | AC 1mA～1000A |
|---|---|
| Maximum allowable current | AC 1200A |
| Nominal Current Ratio | 2000:1 |
| Example output | AC 50.4ｍV±2％（10A/10Ω） |
| Application frequency | 10Hz～5kHz |
| Wire diameter that can be installed | Up to 74×80mm |
| Withstand voltage | AC 2200V/1 min (between exterior case ~ output) |
| Insulation resistance | DC 500V/100MΩ or more (between exterior case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less (but not condensing) |
| Output Leads | Approx. 1m single core shielded wire (φ3mm) |
| Dimensions and weight | W138×H224.5×D34mm approx. 630g |
