Dust Collector, Facilities, Japan, Murakoshi Industries

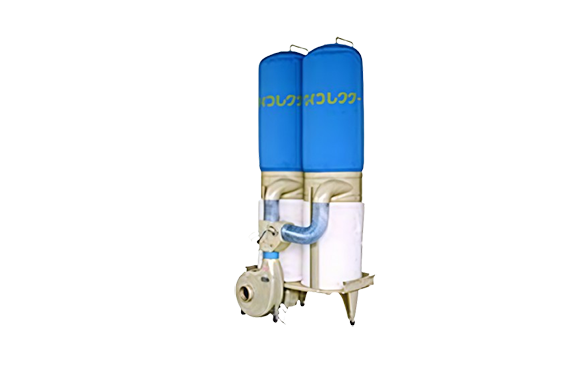

Murakoshi MY-150XNW Three-dimensional Trademark Dust Collector
Product Made in Japan
Manufacturer: Murakoshi
Model: MY-150XNW
Specifications
| Maximum air volume | 33 m 3 / min |
| Maximum static pressure (at minimum air volume) | 3.04 kPa |
| Power supply | 3 phase 200 V |
| Electric motor | 2.2 kW 2P |
| fan | Plate fan |
| Switch code | Direct insertion push button · 3.5 m |
| filter | One each above and below |
| Dust compartment volume | 440 L |
| Suction port diameter | φ 148 |
| caster | φ 65 4 pieces |
| Depth D × width W × height H | 1170 × 970 × 2880 |
| Approximate weight | 130 kg |
