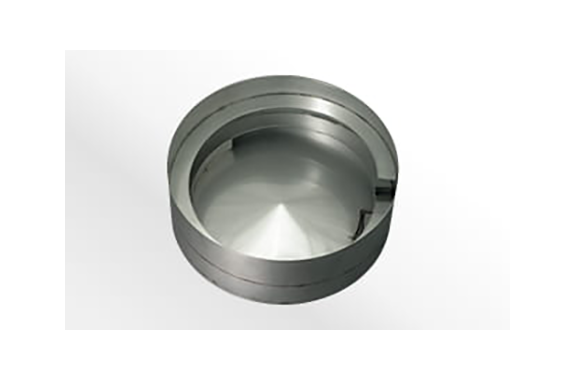

Manufacturer: Murata Seiko Co., Ltd.
Model: BA Type
Features
It is easy to attach a return pocket, so it is easy to use an overflow that allows the work to spill out.
Because the feed path is located directly above the feed channel, it is important to select a bowl with sufficient lead for the size of the workpiece to prevent it from becoming clogged.
Material: Stainless steel SUS304
Specification
| Format | Ordering number | Outer diameter A | Overall height H | Feeding path width B | Lead P | Side wall thickness E | Bottom plate thickness F | Center hole diameter C | Overall height with flange M | Center mounting type Overall height N | Main unit used |
|---|
| A-2 | | 100 | 25 | 7 | 10 | 1.5 | 2 | 7 | | 30 | PVH-01 |
| A-3 | | 120 | 30 | 8 | 10 | 1.5 | 2 | 7 | | 36 | PVH-01 |
| A-4 | | 150 | 45 | 8 | 17 | 2 | 2 | 7 | | 57 | PVH-14 |
| A-5 | | 190 | 55 | 15 | 20 | 2 | 2 | 9 | | 64 | PVH-18 |
| A-6 | | 230 | 65 | 20 | 25 | 2 | 2 | 9 | 73 | 73 | PVH-23, PV-25 |
| A-7 | | 290 | 100 | 25 | 35 | 2 | 2 | 11 | 106 | | PVH-28, PV-30 |
| A-9 | | 350 | 120 | 30 | 45 | 2 | 2 | | 120 | | PVH-35, PV-30, PV-40 |
