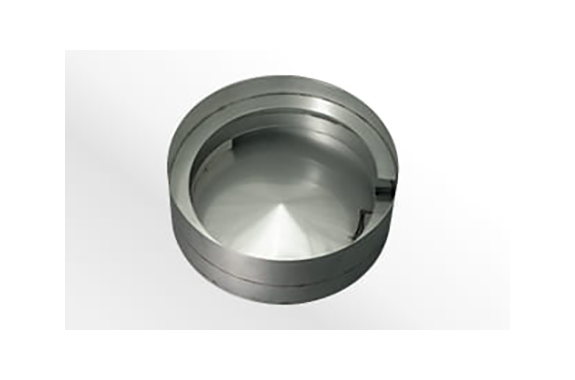

Murata BD Type Bowl Cylindrical Bowl
Manufacturer: Murata Seiko Co., Ltd.
Model: BD Type
Features
– Compared to a cylindrical bowl, there are no rails above the feed path, so workpieces do not get clogged.
-Material: Stainless steel SUS304
Format list
Specification
| Format | Ordering number | Outer diameter A | Overall height H | Feeding path width B | Lead P | Number of volumes | Side wall thickness E | Bottom plate thickness F | Overall height with flange M | Center mounting type Overall height N | Main unit used | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D-6 |
| 300 | 77 | 30 | 30 | 1.5 | 2 | 2 | 82 | 82 | PVH-23 PV-25 | |||||
| D-8 |
| 320 | 102 | 30 | 40 | 1.5 | 2 | 2 | 106 | 106 | PVH-23 PV-25 | |||||
| D-10 |
| 350 | 107 | 35 | 45 | 1.5 | 2 | 2 | 115 | 115 | PVH-28 PV-30 | |||||
| D-12 |
| 400 | 113 | 35 | 50 | 1.5 | 2 | 2 | 127 | 127 | PV-40 | |||||
| D-14 |
| 450 | 138 | 40 | 60 | 1.5 | 2 | 2 | 145 | 145 | PV-45 | |||||
| D-16 |
| 500 | 160 | 50 | 70 | 1.5 | 2 | 3 | 175 | 175 | PV-45 PV-50 | |||||
| D-18 Made-to-order products |
| 550 | 178 | 50 | 70 | 1.5 | 3 | 3 | 182 | 182 | PV-50 | |||||
| D-20 Made-to-order products |
| 600 | 178 | 60 | 70 | 1.5 | 3 | 3 | 182 | 182 | PV-60 | |||||
| D-21 Made-to-order products |
| 650 | 203 | 80 | 80 | 1.5 | 3 | 3 | 195 | 195 | PV-60 | |||||
| D-22 Made-to-order products |
| 700 | 203 | 80 | 80 | 1.5 | 3 | 3 | 195 | 195 |
