Murata Seiko

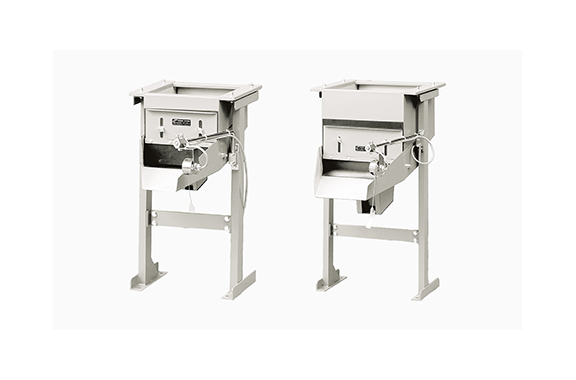

Murata HP-T Type Hopper
Manufacturer: Murata Seiko Co., Ltd.
Model: HP-T Type
Features
・The standard specification does not include a controller.
– The installation area is small and the space below the hopper is large, which is advantageous when there are restrictions on installation location, etc.
Format list
Specification
| Model Ordering Number | Capacity (L) | Weight (kg) | Vibrators | controller | Voltage (V) | Current (A) | Parts feeder combination example |
|---|---|---|---|---|---|---|---|
| HT25-①②③ ④⑤ | 5 | 12 | HV-5 | PC-MHN | 100/200 | 0.6/0.3 | PVH-23 |
| HT30-①②③ ④⑤ | 10 | 17 | HV-5 | PC-MHN | 100/200 | 0.6/0.3 | PVH-28 |
| HT40-①②③ ④⑤ | 20 | twenty three | HV-10 | PC-MHN | 100/200 | 0.8/0.4 | PV-40 |
| HT50-①②③ ④⑤ | 30 | 31 | HV-15 | PC-MHN | 100/200 | 1.6/0.8 | PV-50 |
① Input voltage ② Input frequency ③ Material ④ When using with level switch ⑤ Parts feeder rotation direction
