Murata Seiko

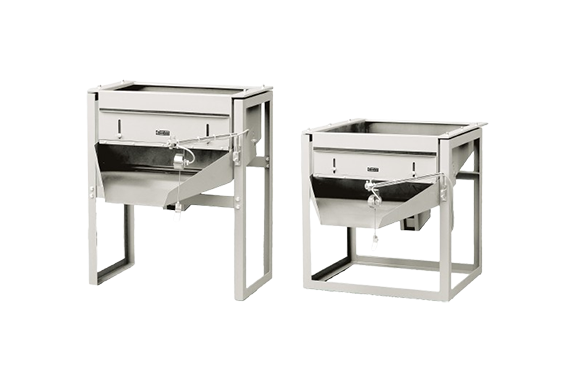

Murata HP Type Hopper
Manufacturer: Murata Seiko Co., Ltd.
Model: HP Type
Features
・The standard specification does not include a controller.
– Large quantities of workpieces can be stocked and a fixed quantity can be supplied to parts feeders, conveyors, etc. without straining the workpieces.
Format list
Specification
| Model Ordering Number | Capacity (L) | Weight (kg) | Vibrators | controller | Voltage (V) | Current (A) | Parts feeder combination example |
|---|---|---|---|---|---|---|---|
| HP60-①②③ ④⑤ | 48 | 51 | HV-20 | PC-MHN | 100/200 | 2/1 | PV-50 PV-60* |
| HP70-①②③ ④⑤ | 70 | 60 | HV-20 | PC-MHN | 100/200 | 2/1 | PV-50 PV-60* |
| HP80-①②③ ④⑤ | 100 | 91 | HV-20 | PC-BHN | 100/200 | 4/2 | PV-50 PV-60* |
① Input voltage ② Input frequency ③ Material ④ When equipped with level switch ⑤ Rotation direction of parts feeder
* If you want to change the outlet height, it will be a special order.
