Murata Seiko

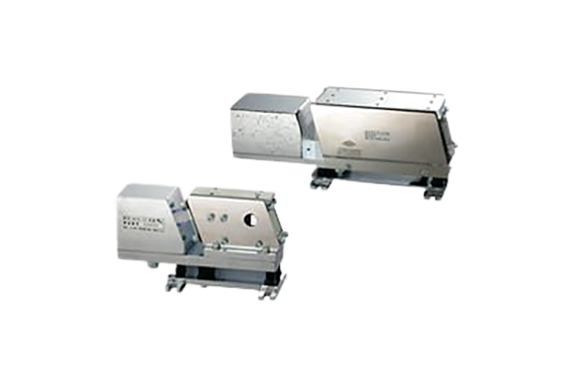

Murata NCK Type Linear Feeder
Manufacturer: Murata Seiko Co., Ltd.
Model: NCK Type
Features
This is a floating linear feeder with rubber feet to reduce the transmission of vibrations to the base to which it is attached, and with built-in vibration-damping rubber, it is less susceptible to the effects of vibrations from other parts, ensuring stable movement.
Format list
Specification
| Format | Ordering number | Power supply voltage (V) | Current (A) | Standard chute length (m/m) | Chute weight (kg) | Body weight (kg) | Standard Controller | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| NCK-15 |
| 100 | 0.2 | 300-350 | 1.2 to 1.5 | 4 | PC-MHN PC-101 | ||||
| 200 | 0.1 | |||||||||
| NCK-20 |
| 100 | 0.6 | 350-400 | 1.5-2.0 | 7 | PC-MHN PC-101 | ||||
| 200 | 0.3 | |||||||||
| NCK-40 |
| 100 | 0.8 | 400-600 | 2.0-3.0 | 16 | PC-MHN PC-101 | ||||
| 200 | 0.4 | |||||||||
| NCK-60 |
| 100 | 1.2 | 600-800 | 3.0-4.0 | 28 | PC-MHN PC-101 PC-301 | ||||
| 200 | 0.6 |
