Murata Seiko

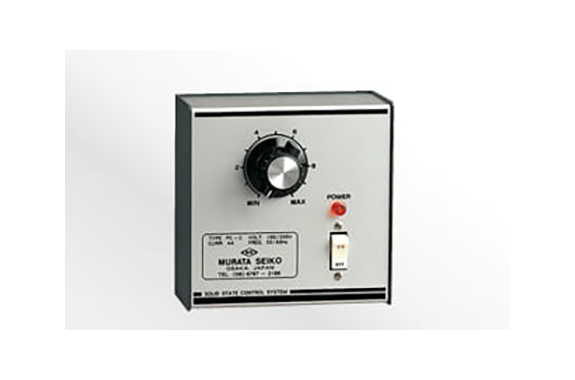

Murata PC-C Series Controller Standard
Manufacturer: Murata Seiko Co., Ltd.
Model: PC-C Series
Features
・Half-wave dedicated controller
Ambient temperature: 0℃ to 40℃
Ambient humidity: 10 to 90% RH (no condensation)
・Compatible with AC100/200V
Format list
Specification
| Ordering number | PC1C | |
|---|---|---|
| specification | Input Power | AC100V/200V 50Hz/60Hz |
| Drive system | Half-wave current drive method | |
| Control Function | All-wave AC stop by contact input | |
| Contact input | Control by non-voltage contacts | |
| Output Current | MAX 4.0A | |
| remarks | Compatible main unit (manufactured by our company) | PV-25 to 50 (However, PV-50 is only compatible with AC200V) |
