Murata Seiko

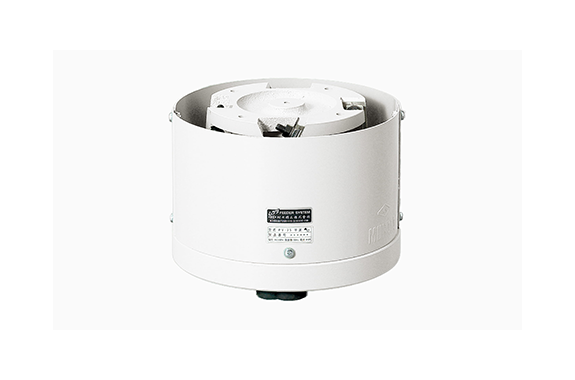

Murata PV Type Parts Feeder
Manufacturer: Murata Seiko Co., Ltd.
Model: PV Type: PV-25; PV-30; PV-35; PV-40; PV-45; PV-50; PV-60;
Features
- 1 electromagnet (magnet coil)
– Simplified mechanical component configuration makes maintenance easy. - With a wide range of models and various alignment methods, we can handle a wide range of products, from general parts to heavy items such as large billets.
Specification
| Format | Ordering number | Body weight (kg) | Power supply voltage (V) | Current (A) | Frequency 50/60Hz (min) | Standard Controller | Applicable bowl | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PV-25 |
| twenty one | 100 | 1.6 | 3000/3600 | PC-MHN PC-101 PC-301 | A-6 | ||||||
| 200 | 0.8 | |||||||||||
| PV-30 |
| 34 | 100 | 2 | 3000/3600 | PC-MHN PC-301 PC-501M | A-7 | ||||||
| 200 | 1 | |||||||||||
| PV-40 |
| 37 | 100 | 3 | 3000/3600 | PC-MHN PC-301 PC-501M | A-9 | ||||||
| 200 | 1.5 | |||||||||||
| PV-45 |
| 54 | 100 | 4 | 3000/3600 | PC-MHN PC-501M | A-10 | ||||||
| 200 | 2 | |||||||||||
| PV-50 |
| 80 | 100 | 8 | 3000/3600 | PC-BHN PC-501M | A-11 | ||||||
| 200 | 4 | |||||||||||
| PV-60 |
| 100 | 200 | 6 | 3000/3600 | PC-BHN PC-601M | A-13 |
