Musashi Engineering

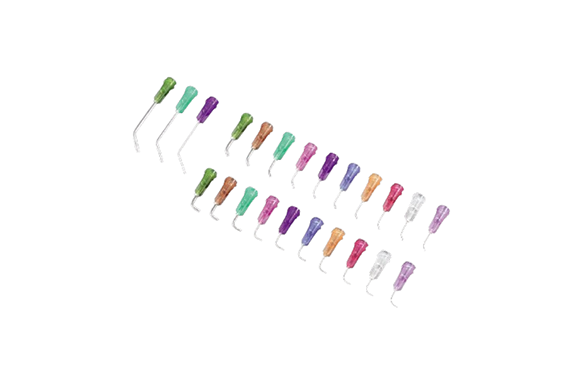

Musashi Curved Needle

Manufacturer: Musashi Engineering, Inc.
Features
– Stable discharge achieved through bending processing with excellent flow characteristics.
– Two different angles and a wide variety of variations allow for a wide range of applications.
– Double-start thread design at the base of the needle allows for safe and secure syringe attachment.
– Large four-bladed design ensures secure screwing into the syringe.
Specifications
| Gauge | Inner Diameter (mm) | Outer Diameter (mm) | Color | 45° Angle Model (12.7mm Needle) | 45° Angle Model (38.1mm Needle) | 90° Angle Model (12.7mm Needle) | Quantity (pcs / pack) |
|---|---|---|---|---|---|---|---|
| 14 | 1.52 | 1.83 | Dark Green | CPN-14G-A45 | CPN-14G-B45 | CPN-14G-A90 | 50 pcs / pack |
| 15 | 1.37 | 1.65 | Brown | CPN-15G-A45 | CPN-15G-B45 | CPN-15G-A90 | 50 pcs / pack |
| 18 | 0.84 | 1.27 | Light Green | CPN-18G-A45 | CPN-18G-B45 | CPN-18G-A90 | 50 pcs / pack |
| 20 | 0.58 | 0.91 | Pink | CPN-20G-A45 | CPN-20G-B45 | CPN-20G-A90 | 50 pcs / pack |
| 21 | 0.41 | 0.71 | Purple | CPN-21G-A45 | CPN-21G-B45 | CPN-21G-A90 | 50 pcs / pack |
| 22 | 0.41 | 0.71 | Blue | CPN-22G-A45 | CPN-22G-B45 | CPN-22G-A90 | 50 pcs / pack |
| 23 | 0.33 | 0.64 | Orange | CPN-23G-A45 | CPN-23G-B45 | CPN-23G-A90 | 50 pcs / pack |
| 25 | 0.25 | 0.51 | Rose | CPN-25G-A45 | CPN-25G-B45 | CPN-25G-A90 | 50 pcs / pack |
| 27 | 0.20 | 0.51 | White | CPN-27G-A45 | CPN-27G-B45 | CPN-27G-A90 | 50 pcs / pack |
| 30 | 0.15 | 0.30 | Light Purple | CPN-30G-A45 | CPN-30G-B45 | CPN-30G-A90 | 50 pcs / pack |
