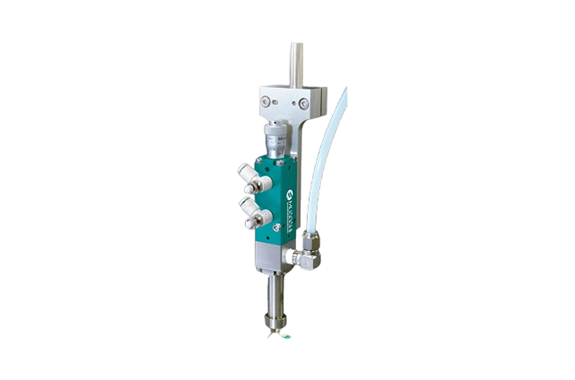

Musashi CV-10 Coating Valve
Manufacturer: Musashi Engineering, Inc.
Model: CV-10
Features
・Achieves uniform coating application.
・No scattering, and clean coating on edges and end faces.
・Low flow rate design allows for thin film coating.
・Equipped with a dedicated nozzle, allowing for wide-area film coating.
・Equipped with a micrometer, allowing for numerical control of valve stroke.
Specifications
| name | Coating valve CV-10 | |
| Model | CV-10-2P-1N | CV-10-2P-1N-L6 |
| Applicable Viscosity | ~100mPa • s | |
| Operating air supply pressure range | 0.35 to 0.5 MPa | |
| Maximum liquid material supply pressure | 0.5MPa | |
| Liquid material supply port | Φ6 x Φ4 liquid transfer joint |
