Musashi Engineering

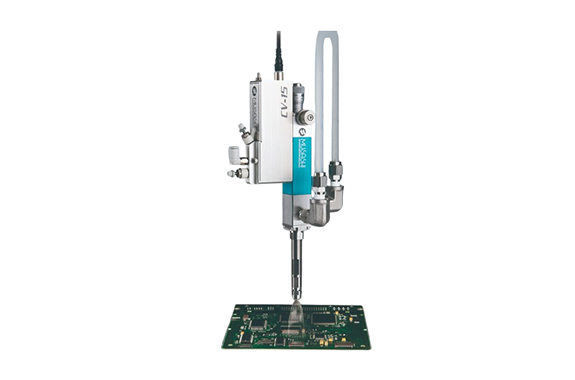

Musashi CV-15 Coating valve
Manufacturer: Musashi Engineering, Inc.
Model: CV-15
Features
・Thin film coating is achieved using a dedicated nozzle.
・The direction of the thin film can be freely changed.
・Compatible with circulation systems. Improved coating quality.
Specifications
| name | Coating valve type 15 |
| Model | CV-15 |
| Applicable Viscosity | 1 to 100 mPa • s |
| Operating air supply pressure range | 0.4 to 0.5 MPa |
| Liquid material supply pressure range | Max.0.5MPa |
| Liquid material supply port | Rc1/8 |
| Applicable nozzle | Dedicated coating nozzle |
